Product Overview

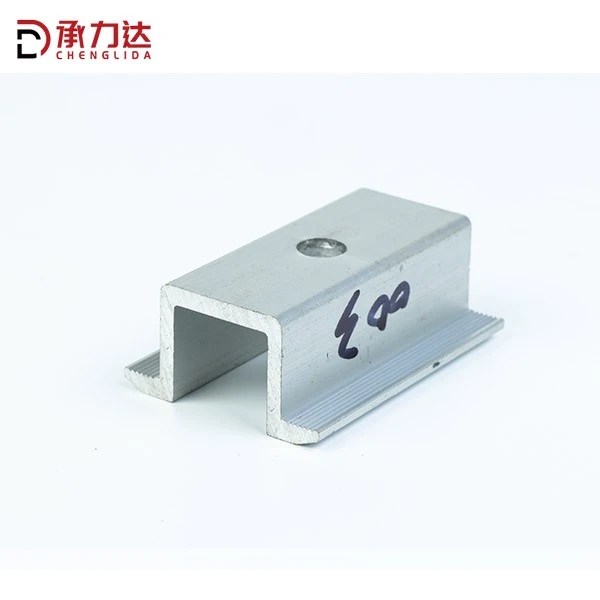

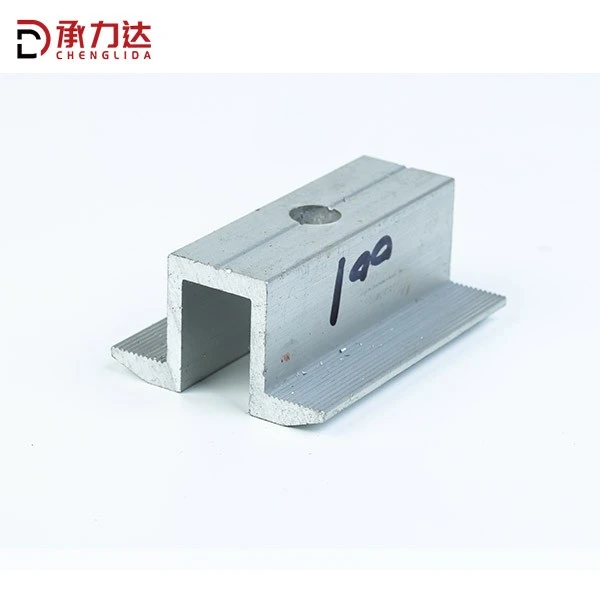

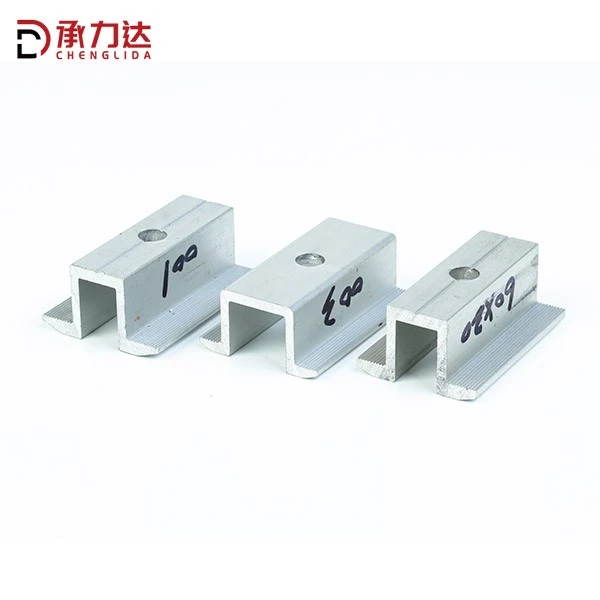

T-shaped Solar Panel Clamp, also known as a T-shaped corrugated steel tile clamp or trapezoidal roof clamp, is an integrated photovoltaic mounting fastener designed for trapezoidal corrugated steel tile roofs. It is used to secure PV rails or solar modules onto roof peaks without drilling through metal roofing sheets.
Technical Specifications
|
Item |
Specification |
|
Product Name |
T-shaped Solar Panel Clamp |
|
Product Category |
PV Module Clamp |
|
Product Type |
T-shaped Corrugated Steel Tile Clamp |
|
Applicable Roof Type |
Trapezoidal Corrugated Steel Tile Roof |
|
Main Function |
Fixing PV rails or solar modules to metal roof peaks |
|
Material |
Aluminum 6063-T5 / 6005-T5 |
|
Surface Treatment |
Anodized Finish |
|
Oxide Film Thickness |
AA10–15 μm |
|
Standard Length |
50 mm |
|
Customizable Length |
40–120 mm |
|
Applicable Roof Sheet Thickness |
0.4–0.8 mm |
|
Wind Resistance |
45 m/s |
|
Snow Load |
1.5 kN/m² |
|
Operating Temperature |
-40℃ to +85℃ |
|
Warranty |
10 years |
|
Design Service Life |
25 years |
Core Features
Non-penetrating fixing design avoids roof drilling, helping maintain trapezoidal metal roof waterproof integrity.
T-shaped integrated structure enables direct PV rail or module connection on roof peaks.
270° wrap-around clamping structure increases roof profile contact area for enhanced connection stability.
6063-T5 / 6005-T5 aluminum alloy construction provides a lightweight and corrosion-resistant clamp structure.
Snap-on installation design simplifies clamp attachment on trapezoidal metal roof systems.
Typical Applications
Industrial Trapezoidal Metal Roof PV Systems
PV mounting on trapezoidal corrugated steel roofs for industrial plants and manufacturing facilities.
Warehouse and Logistics Rooftop PV Installations
Large-span metal roof PV projects requiring reduced roof penetration.
Solar Carports and Lightweight Structures
Non-penetrating PV mounting applications for carports, awnings, and lightweight structures.
Installation Method
Position the T-shaped clamp on the designated trapezoidal roof peak.
Align the clamp connection point with the PV rail or solar module mounting position.
Insert the stainless steel bolt into the rail slot.
Tighten the fastening components to the recommended torque to secure the connection without excessive compression.
Manufacturing Capability
15+ years of experience in photovoltaic mounting systems, specializing in PV accessories and customized mechanical components for solar mounting projects.
10+ production lines and 30+ stamping machines support standard manufacturing and customized production.
Products are supplied to customers in 50+ countries for solar mounting projects and photovoltaic installations.
OEM/ODM support includes drawing review, sample evaluation, and customized manufacturing.
The manufacturing process covers material preparation, metal processing, quality inspection, packaging, and delivery.
Technical support is provided for product selection, quality control, and project-specific requirements.
